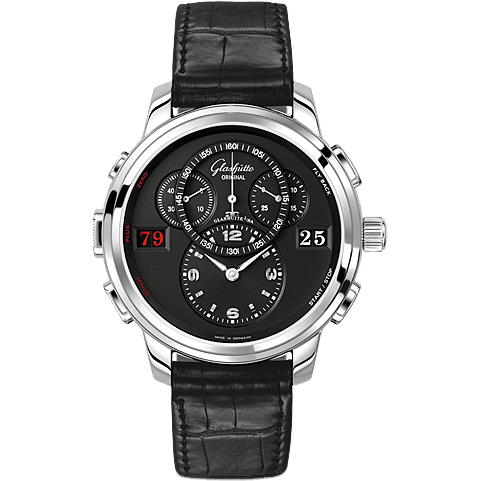

Glashütte Original PanoMatic Counter XL Stainless Steel / Black / Folding Ref. 1-96-01-02-02-04
The Glashütte Original PanoMatic Counter XL Stainless Steel / Black / Folding 1-96-01-02-02-04 has a 44 mm stainless steel case, measures 16 mm thick, and is water resistant to 50 metres.
The PanoMaticCounter XL presents its curiously fascinating counter complication in an elegant and effective manner. Red numerals appear on a black ground in a double-digit window at one level positioned at 9 o’clock. The wearer activates the counter using three pushers positioned on the left side of the stainless steel case. The plus pusher at 9 o’clock moves the count forward, one unit at a time, from 00 to 99; the minus pusher at 8 o’clock counts down, and the zero pusher at 10 o’clock resets to zero (00). A superb example of the art of engineering, the PanoMaticCounter XL features the Calibre 96-01, a classic column wheel chronograph with flyback function. Comprising 584 individually-crafted components, the 96-01 is based on the award-winning Glashütte Original Caliber 95. Its patented bilateral winding mechanism uses step gears to transmit energy quickly and efficiently to the movement and enables an ‘intelligent’ accommodation to the behavior of the wearer. Complementing this remarkable movement is the novel counter complication requiring 217 individual components. Directly opposite the counter window, at 3 o’clock, is the visually compelling Glashütte Original panorama date display, with its seamless presentation of the date in white numerals on a black ground. Aligned along the vertical axis are the off-center hour and minute display in the lower half of the dial and, in the upper half, the large chronograph stop-seconds scale, raised above the galvanized black dial and flanked by the subsidiary seconds and 30-minute counters, whose zero points have been rotated 60° to guarantee optimum legibility. Reference 1-96-01-02-02-04 is fitted with a folding clasp. Reference 1-96-01-02-02-50 is fitted with a short folding clasp. Reference 1-96-01-02-02-01 is fitted with a pin buckle.
- Diameter
- 44 mm
- Thickness
- 16 mm
- Water resistance
- 50 m
- Case
- Stainless Steel
- Released
- 2008
- Movement
- Glashütte Original caliber 96-01
Specifications
Case and dimensions
- Case diameter
- 44 mm
- Thickness
- 16 mm
- Lug width
- 20 mm
- Case shape
- Round
- Case material
- Stainless Steel
- Crystal
- Sapphire
- Case back
- Open
- Water resistance
- 50 m
Dial
- Dial colour
- Black
- Indexes
- Stick / Dot
- Hands
- Alpha
Movement
- Movement maker
- Glashütte Original
- Movement type
- Automatic
- Display
- Analog
- Power reserve
- 42 h
- Frequency
- 28800 vph
- Jewels
- 72
- Movement diameter
- 32.2 mm
- Complications
- Big Date, Column wheel, Countdown, Flyback, Hours, Minutes and Small Seconds
Production
- Release year
- 2008
