Patek Philippe caliber 26‑330 S QA LU 24H
Patek Philippe · Movement

Patek Philippe caliber 26‑330 S QA LU 24H

Ref. 26‑330 S QA LU 24H

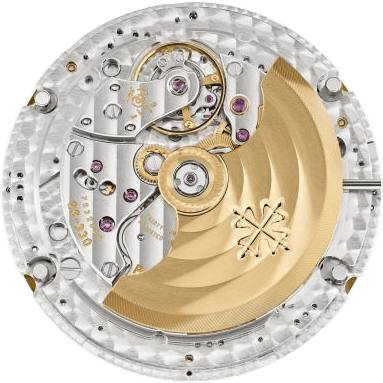

Caliber 26-330 S QA LU 24H is a self-winding movement equipped with Patek Philippe’s patented annual calendar mechanism, displaying the day, date, and month through apertures. Additional indications include a moon-phase display, a 24-hour indication, and central sweep seconds. The movement measures 32.6 mm in diameter and 5.8 mm in thickness and is composed of 339 components, including 34 jewels. It operates at a frequency of 28,800 semi-oscillations per hour (4 Hz) and provides a power reserve ranging from approximately 35 to 45 hours. Automatic winding is ensured by a central 21-carat gold rotor. Timekeeping is regulated by a Gyromax balance in combination with a Spiromax balance spring. The movement is finished and certified in accordance with the Patek Philippe Seal.

Type
Automatic
Display
Analog
Power reserve
45 h
Frequency
28800 vph
Jewels
34
Diameter
33.3 mm
Complications
Additional 24 Hour Hand (fixed), Annual Calendar, Date, Day, Hours, Minutes, Month, Moonphase, Seconds
