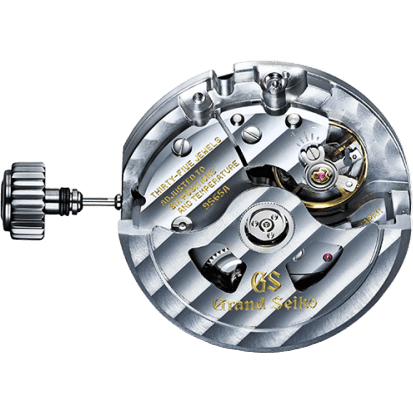

Grand Seiko caliber 9S65
Grand Seiko · Movement

Grand Seiko caliber 9S65

Ref. 9S65

Caliber 9S65 is the most standard automatic movement that typifies the 9S mechanical series. The old and new movements may appear to have a similar design, but they are utterly different in terms of performance. Grand Seiko has not only revised the materials used to make this movement, but also applied MEMS (Micro Electro Mechanical System) technology, which utilizes semi-conductor manufacturing technology, to the production of the watch parts. Grand Seiko has significantly enhanced the basic performance of this timepiece, and has also redesigned the way in which the oscillating weight winds the mainspring. The winding system of its predecessor, Caliber 9S55, used Grand Seiko's Magic Lever mechanism. By contrast, Caliber 9S65 uses reverser gear train system. Hardening the components has helped improve the durability of the reverser system, which had been a weakness.

Type
Automatic
Display
Analog
Power reserve
72 h
Frequency
28800 vph
Jewels
35
Diameter
28.4 mm
Complications
Date, Hours, Minutes, Seconds

Variants

1
